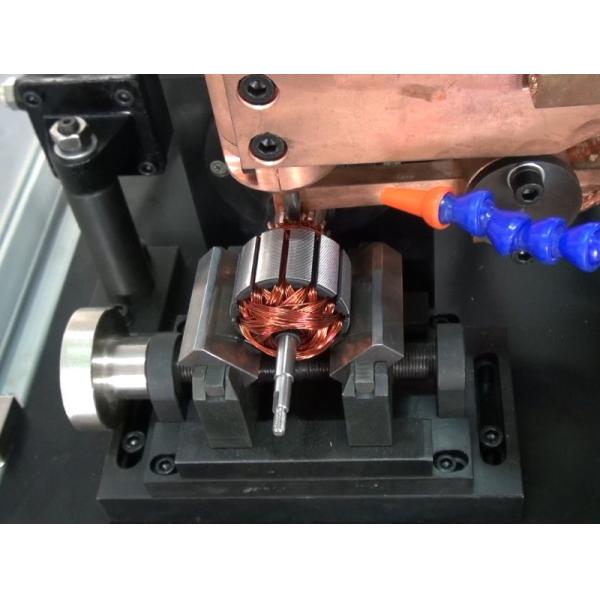

Welding The Copper Wire Commutator Hook Fusing Machinery / Machinery For Mixer Motor
Quick Detail:
1, This commutator welding machine uses Miyachi controller.
2, This commutator welding machine can detect the welding current, alarm if the welding current is out of the set limit.
3, This commutator welding machine is used for welding the wire with the commutator hook.
4, The touch screen can save different program for different model armature.
5, PLC and touch screen control.
Description:
Automatic Commutator Hotstacking Machine
This automatic commutator hotstacking machine is used for welding the copper wire the commutator hook, adapts Miyachi controller to detect the welding current, it will alarm if the welding current is out of the set limit. The performance is stable and reliable. The machine is easy operation and easy change-over.
Applications:
This rotor commutator spot welding machine is suitable for commutator fusing, it’s widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.
Specifications :
| Armature O.D | 15~100mm |
| Shaft O.D | 1.8~23mm |
| Commutator O.D | 5~60mm |
| Slot number | 8~24 slots |
| Wire diameter | 0.07mm~1.8mm |
| Max. Power | 25KVA |
| Air pressure | 0.3~0.5MPa |
| Production Efficiency | 10sec/pc |
| Voltage | AC220V, 50/60Hz |
| Miyachi controller | |
Competitive advantages:
This commutator fushing spot welding machine is easy for operation. It’s helpful for customer to reduce labor cost and improve production efficiency. It can detect the hook fusing missing.
Installation
1. The equipment should be placed in a dry place and prevent from dusts. There should not be any corrosive gas and flammable/explosive objects in the surrounding area.
2. Make the surrounding area level; adjust bolts of each position.
3. Correctly connect with the inlet power line; the wire diameter should be bigger than 4m㎡, and should use copper wire.
4. Correctly connect with the air pipe.
5. Completely check whether any part of the machine is loosen during the transportation. Correctly adjust the fastening points of each position.
6. Add water into the cooling water tank; the water should be around 90% of the capacity of the water tank.
